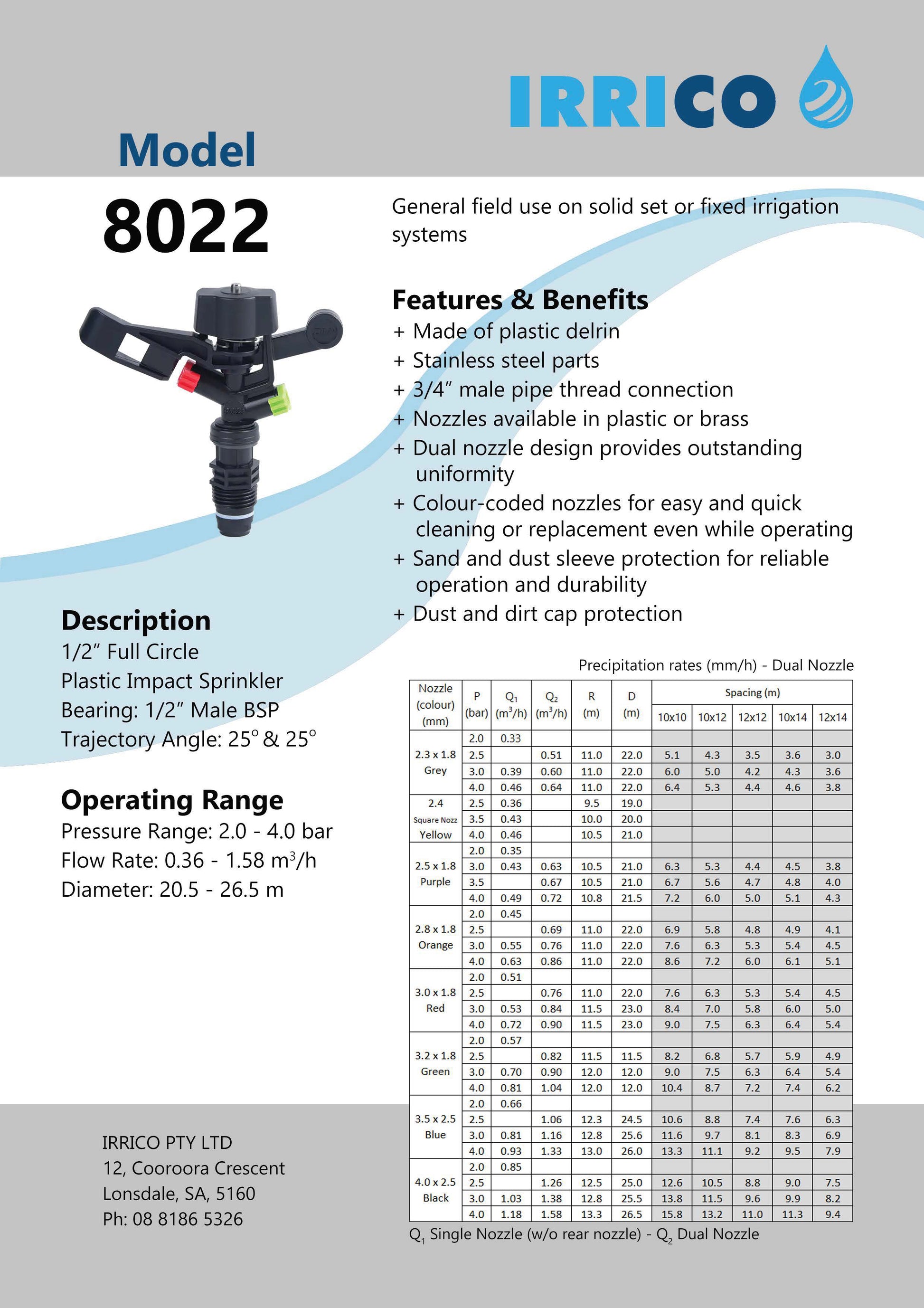

8022 Series

General field use on solid set or fixed irrigation systems

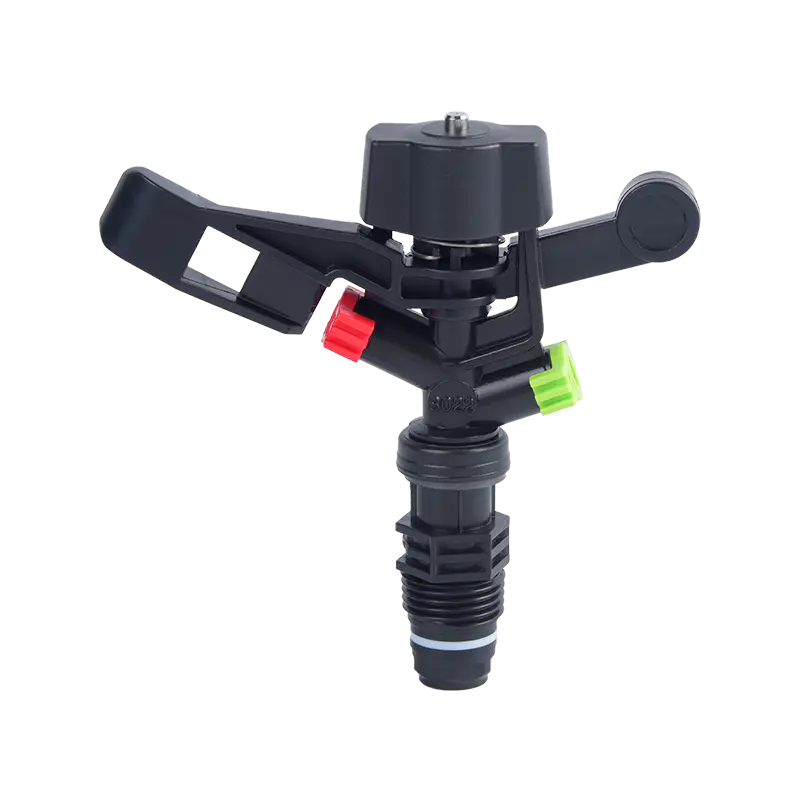

Description
1/2" Full Circle
Plastic Impact Sprinkler
Bearing: 1/2" Male BSP
Trajectory Angle: 25° & 25°

Operating Range
Pressure Range: 2.0 - 4.0 bar
Flow Rate: 0.36 - 1.58 m³/h
Diameter: 20.5 - 26.5 m

Features & Benefits
+ Made of plastic Delrin
+ Stainless steel parts
+ 3/4" male pipe thread connection
+ Nozzles available in plastic or brass
+ Dual nozzle design provides outstanding uniformity
+ Colour-coded nozzles for easy and quick cleaning or replacement even while operating
+ Sand and dust sleeve protection for reliable operation and durability
+ Dust and dirt cap protection
